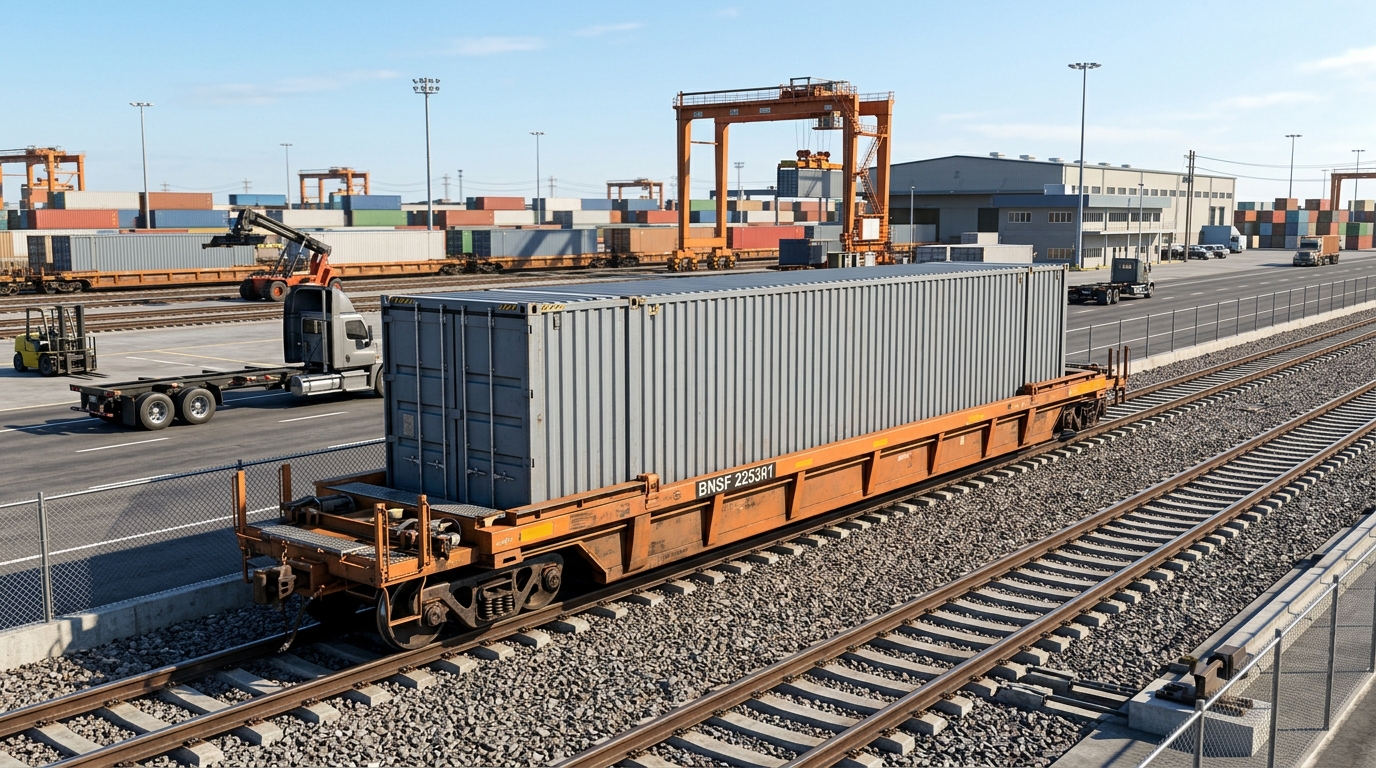

53ft Intermodal Container Loading Calculator
Use the 53DHC profile for a domestic intermodal container, not a 53ft dry van trailer. Review cargo fit, door access and the actual equipment weight allowance.
Test the quantity you enter and review placed and unplaced cargo. This is a planning estimate, not a maximum-capacity guarantee or transport approval.
A 53ft intermodal container loading plan must check the entered cargo against both the interior and the rear door. The CBM3 53DHC profile uses 1601.9 x 252.4 x 278.1 cm and a configured 25,809 kg cargo ceiling. Use this domestic container profile rather than the similarly named 53ft dry van; a geometric result alone does not approve a container, chassis or journey.
Open the 53DHC loading planner. For a new job, confirm the equipment before entering cargo. This link supplies an initial selection, not an automatic calculation. A saved job or your own selection takes priority.
Current planning profile
| Profile field | Configured value |
|---|---|
| Planning length x width x height (cm) | 1,601.9 x 252.4 x 278.1 |
| Default rear-door width x height (cm) | 248.9 x 278.1 |
| Configured cargo ceiling (kg) | 25,809 |
| Rectangular planning volume (m3) | 112.441 |
| Profile review status | Catalog approved; not actual-vehicle approval |
The catalog has a tare range rather than one verified empty-unit weight. Do not present the higher tare as the measured weight of every unit. The booked container, chassis and road or rail journey still need their own checks.
Compare the source without replacing the preset
| Source field | Published value or exact conversion |
|---|---|
| Interior length | 52 ft 6 11/16 in (1601.94625 cm) |
| Interior width | 99 3/8 in (252.4125 cm) |
| Interior height | 109 1/2 in (278.13 cm) |
| Door width x height | 98 x 109 1/2 in (248.92 x 278.13 cm) |
| Gross rating | 67,200 lb |
| Aluminum tare | Average 10,200 lb |
| Steel tare | 10,300 lb |
Source: Union Pacific EMP and UMAX container specifications. The operator distinguishes gross rating, tare and forklift floor rating. None is interchangeable with legal road cargo capacity. CBM3 rounds these dimensions and stores a separate cargo ceiling; the source does not state that ceiling as a universal route allowance.
Reproduce two entered-order examples
Use metric units and switch palletization off. Keep Horizontal Only rotation, Fragile off, no added stack-weight limit, Normal priority, no delivery stop and default global/equipment constraints. Set the per-example stacking and upright controls as shown. Use complete outer dimensions and cargo weight; include a cargo-side pallet or base once when present.
| Example | Width x length x height cm | Units | kg per unit | Input m3 | Stackable | This Side Up |
|---|---|---|---|---|---|---|
| A: cartons | 40 x 60 x 80 | 24 | 20 | 4.608 | Yes | No |
| B: upright clearance | 100 x 120 x 275 | 1 | 1000 | 3.300 | No | Yes |
| Example | Method | Entered | Placed | Unplaced | Allocated units | Placed m3 | Placed kg | Payload check |
|---|---|---|---|---|---|---|---|---|
| A | Max Volume | 24 | 24 | 0 | 1 | 4.608 | 480 | Within configured ceiling |
| A | Best Balance | 24 | 24 | 0 | 1 | 4.608 | 480 | Within configured ceiling |
| B | Max Volume | 1 | 1 | 0 | 1 | 3.300 | 1,000 | Within configured ceiling |
| B | Best Balance | 1 | 1 | 0 | 1 | 3.300 | 1,000 | Within configured ceiling |
The 275 cm upright example fits the modeled height and default door. A separate 250 x 250 x 100 cm, 100 kg upright test fits the interior but neither horizontal orientation passes the 248.9 cm door: both methods leave that one item unplaced. Input volume includes cargo that remains unplaced. If no container is allocated, that does not mean no equipment is needed; the method found no valid placement for the entered item.
Both methods ran on 6 October 2026 through the installed 11.63.52 Worker in Node using current default-equipment helpers. Independent checks cover item accounting, rotation, bounds, collision and support. Cargo weight is compared with a configured ceiling only when that ceiling exists. These results are not browser or physical-loading acceptance.
Why can an item fit inside but fail the door check?
Interior dimensions describe the space after entry. The default 53DHC door is narrower than its interior. A square 250 cm footprint cannot use a different horizontal orientation to solve that difference. A geometric door check still does not simulate forklift handling, turning space or a complete ingress path.
From a geometric result to an operational plan
Review placed and unplaced counts before using the layout. A known cargo mass can support an estimated center of gravity even when vehicle payload is unknown; those are different checks. Missing payload or access data remains unresolved, not unlimited capacity or confirmed clearance.
Keep the actual orientation and stacking permissions. An extra search budget does not guarantee the optimum or minimum equipment count. The planner does not replace equipment, restraint or route assessment by the responsible operator. Account access and export availability follow the current tool controls; unlimited anonymous use is not promised.
Related planning tasks
Compare the 53DV loading guide, follow the step-by-step planning guide, or use the loading-space guide directory.
Plan cartons or loaded pallets in the domestic container
- Choose 53DHC and compare its reference fields with the booked unit. Check the narrower door separately from the interior width.
- Enter each SKU’s packed outer dimensions, quantity and weight. For an already loaded pallet, include the pallet base and tare once, use Horizontal Only and leave stacking off unless that loaded unit may safely be stacked.
- For loose cartons, keep only the rotations and stacking permitted by the cargo. Do not turn an upright unit on its side merely to pass a door check.
- Run the entered order, compare placed and unplaced counts, and inspect the layout. Investigate rejected items and missing operational data before using the plan.
Why volume alone cannot give a 53ft pallet count
The reference interior is about 112.441 m3, but that is not a promise to fill it with that volume of arbitrary freight. Pallet footprints, total heights, gaps, door clearance, stacking permissions and weight change the layout. The 24-carton example is a reproducible small order, not a maximum-capacity test. The separate square-footprint diagnostic demonstrates that an interior-fit item can still fail the narrower door in both horizontal orientations.
The current 11.63.55 profile and default-input composition were checked on 7 October 2026. The Max Volume and Best Balance solver records above remain the 11.63.52 tests of 6 October; the solver was not rerun for this editorial update. All unchanged solver/config dependencies, complete default inputs and the configured weight-helper states were rechecked. The cargo totals are not VGM and are not a verified gross weight including the actual container and restraint equipment.
53ft intermodal planning questions
Is a 53ft domestic container the same as a 53ft trailer?
No. 53DHC is a domestic intermodal container reference; 53DV is a dry-van trailer reference. Their dimensions, known weight fields and access data differ. Choose by the booked equipment, not by nominal length alone.
Can a 250 cm wide item pass this container’s rear door?
The preset door is 248.9 cm wide. In the diagnostic, a 250 x 250 cm square footprint cannot solve that shortfall by horizontal rotation and is left unplaced. This is a geometric clearance check, not a simulated forklift ingress path.
How many pallets fit in a 53ft container?
Test your specified pallet quantity and complete loaded dimensions. A nominal floor count ignores overhang, loaded height, permitted stacking, door clearance and weight. CBM3 tests the order you enter; these examples do not establish a universal maximum.
Does the cargo ceiling establish legal road payload?
No. The configured cargo ceiling is a planning constraint. Union Pacific distinguishes gross rating, tare and forklift floor rating; those cannot be substituted for one another or for the legal capacity of the booked chassis and route.
Should I use Full 3D Rotation for loaded pallets?
Not merely to improve utilization. Keep loaded pallets upright with horizontal rotation only, and enter realistic stacking permissions. Full 3D is an explicit cargo permission for suitable items, not permission to overturn a pallet.
Software compatibility note, 8 October 2026 (Europe/Istanbul): The planning profiles and recorded example inputs were checked against the source-reviewed CBM3 11.63.56 candidate. The earlier example execution dates remain unchanged; this compatibility review is not a new optimization run or physical-loading test. Fleet-provider and carrier references are not manufacturer approval. Confirm the actual unit dimensions, payload and securing requirements.
How to inspect and hand over a loading plan
Use the selected plan and the complete shipment data. Recheck the result after changing cargo, equipment or handling rules.
See every cargo unit in context
Search the cargo inventory, focus on an item and switch between realistic, operational, top and side views. Inspect pallet layers and height sections.
The inventory separates requested units, units in the selected container, units in other containers and unplaced units. Select a row to find its cargo in the scene; playback and height sections show only part of the complete plan.
Use pallet details to inspect full, partial and mixed pallets. A height section filters the view; it does not remove cargo from the plan. Vehicle bodies and wheels provide visual context.
Prepare clearer warehouse instructions
Use product colors and short codes, named groups and delivery stops. Choose a summary or warehouse PDF for the selected plan.
Assign product colors and short codes to connect the cargo table, 3D view and reports. Group and stop names improve instructions; apply the appropriate loading rules when a sequence must be enforced.
Compare verified alternatives and review any manual moves. A manual reallocation affects the current preview and PDF; saved or shared inputs recalculate the automatic arrangement when reopened. Export again after changes.
Read the estimated center of gravity
Review longitudinal, lateral and height coordinates from known cargo and pallet masses. Check the displayed origin and units before comparing plans.
The estimate assumes each item's mass is centered and excludes vehicle tare. Missing or stale additional-material records can leave the complete-load assessment unavailable; explicitly declare none when no extra materials are present.
Coordinates use the load-space frame, not road height. For Step Deck, X starts at the raised front end and Y at the lower-deck datum; axle-form distances run from the rear toward the cab.
Distinguish the loading unit from its carrying vehicle
This loading unit alone does not define an axle configuration.
Inspect cargo and pallet weight distribution in this loading space. A container, swap body or air-cargo unit does not identify the road chassis, rail wagon or aircraft carrying it.
Axle estimates are available after selecting a supported complete road or rail vehicle. Enter its actual mounting positions, full empty reactions and applicable limits; do not reuse a trailer reference as container or aircraft approval.
