40ft Flat Rack Loading Calculator

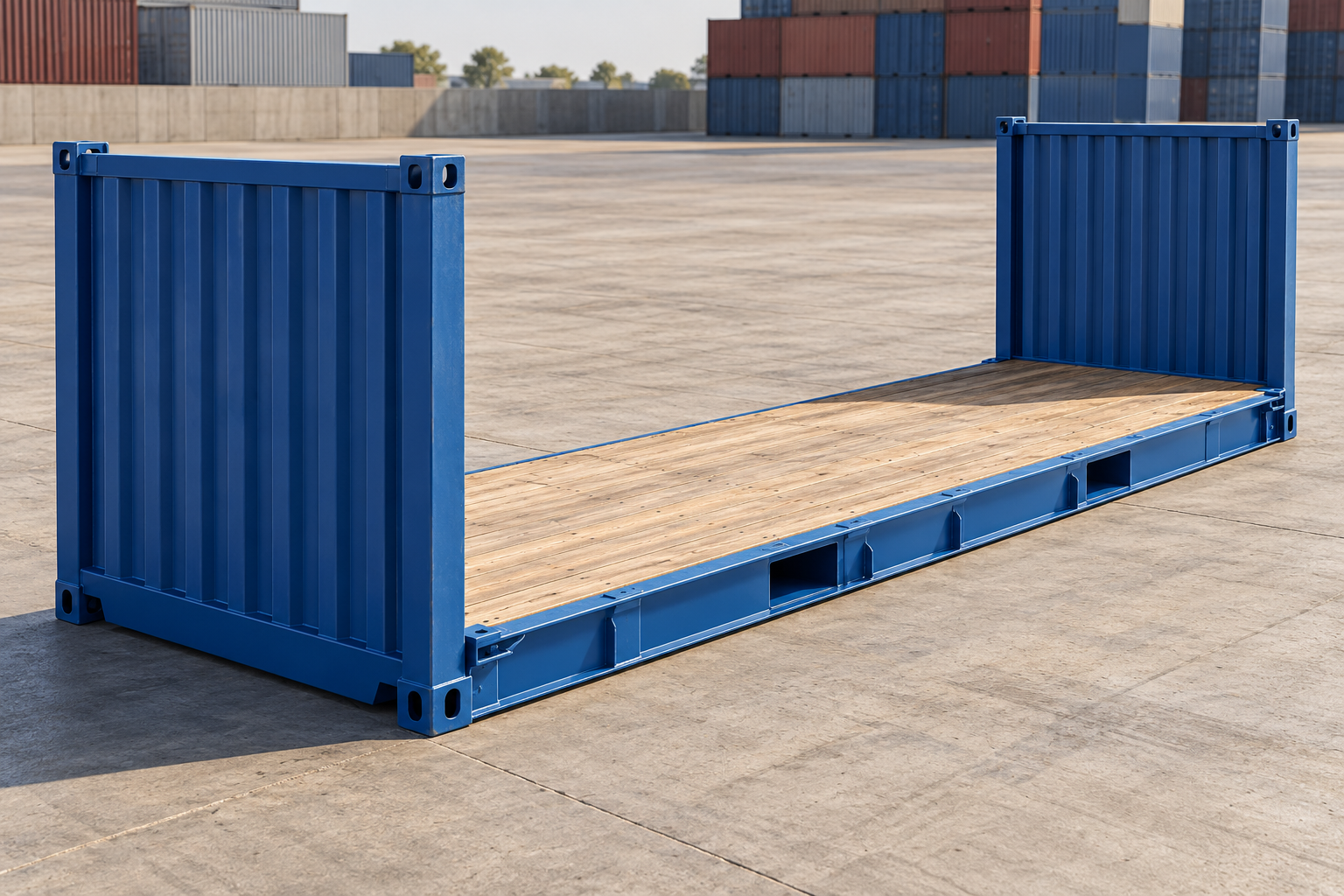

Plan cargo within the 40FR profile, then check the actual end frames, support locations and securing arrangement. Geometric fit is not flat-rack transport approval.
Test the quantity you enter and review placed and unplaced cargo. This is a planning estimate, not a maximum-capacity guarantee or transport approval.
Test an entered shipment with the 40ft flat-rack planner while keeping its software envelope separate from the real equipment’s working limits. CBM3 40FR uses 1217 x 244 x 195 cm, about 57.905 m3, and a 45,000 kg cargo-weight ceiling. It is a reference requiring review, not an overhang permit, concentrated deck-load check or a universal 40ft specification.
Open the 40FR loading planner. For a new job, confirm the equipment before entering cargo. The link supplies an initial selection, not an automatic calculation; a saved job or your own selection takes priority.
Current CBM3 profile and its limits
| Profile field | Configured value |
|---|---|
| Planning length x width x height (cm) | 1,217 x 244 x 195 |
| Configured cargo-weight ceiling (kg) | 45,000 |
| Rectangular planning volume (m3) | 57.905 |
| Deck beam and end-wall geometry | Not supplied |
| Default door opening | Not supplied |
| Equipment tare / maximum gross mass | Not supplied |
| Profile review status | Reference only; review required |
More length does not mean more upright clearance. The current 40FR planning height is 195 cm, lower than 20FR at 222 cm. This legacy reference differs from the carrier example below; do not substitute a more favorable height merely to make an item fit. The catalog marks this profile as a reference requiring review. The displayed volume is the product of its modeled dimensions, not an enclosed capacity rating. Missing tare, access or structural data must not be treated as a passed check.
A carrier example, not a replacement preset
| Carrier field | Published value |
|---|---|
| Minimum length (cm) | 1,165.2 |
| Floor width (cm) | 234.7 |
| Minimum width (cm) | 224.5 |
| Height (cm) | 226.5 |
| Bottom height (cm) | 64.8 |
| Maximum cargo payload (kg) | 49,100 |
| Equipment tare (kg) | 5,900 |
| Maximum gross mass (kg) | 55,000 |
| ISO size type | 45P3 |
The Hapag-Lloyd 40ft Flatrack High Cube / 40ft Platform fleet example separates floor width from minimum width and height from bottom height. These labels are not interchangeable. Its dimensions and mass ratings vary by unit; they are not a universal flat-rack specification.
The current carrier example and the legacy CBM3 envelope describe different references. The carrier values are not silently applied to the calculator. Obtain the booked unit’s specifications and confirmed working limits before using a plan operationally.
Reproduce two entered-order examples
Use metric units, palletization off, Horizontal Only rotation, Stackable off and This Side Up on. Leave global rules and equipment constraints at their defaults, with Fragile off, no additional stack-weight limit, Normal priority and no delivery stop. Enter complete outer dimensions and weight, including a skid or base exactly once.
| Example | Width x length x height (cm) | Entered units | kg per unit | Input volume m3 | Stackable | This Side Up |
|---|---|---|---|---|---|---|
| A: transport crates | 100 x 120 x 100 | 4 | 300 | 4.800 | No | Yes |
| B: upright 200 cm | 120 x 180 x 200 | 1 | 1000 | 4.320 | No | Yes |
| Example | Method | Entered | Placed | Unplaced | Allocated containers | Placed volume m3 | Placed mass kg |
|---|---|---|---|---|---|---|---|
| A | Max Volume | 4 | 4 | 0 | 1 | 4.800 | 1,200 |
| A | Best Balance | 4 | 4 | 0 | 1 | 4.800 | 1,200 |
| B | Max Volume | 1 | 0 | 1 | 0 | 0.000 | 0 |
| B | Best Balance | 1 | 0 | 1 | 0 | 0.000 | 0 |
Example B completes with zero placed and one unplaced item: 200 cm exceeds the current 195 cm height. Zero allocated containers does not mean no container is needed; the model found no valid placement for that item. The same input fits the modeled height of 20FR. Example B has an input volume of 4.320 m3 and an input mass of 1,000 kg whether placed or not. Do not turn an upright-only package onto its side just to obtain a placement.
Both automatic methods were run on 6 October 2026 through the installed 11.63.52 Worker and actual default equipment helpers in Node. Independent checks cover quantities, orientation, bounds, overlap, support and payload. These are engine examples, not browser, crane, structural or physical-loading acceptance tests.
Does selecting flat rack allow overhang?
Not in this default planning workflow. An additional test used one 250 x 250 x 50 cm, 100 kg non-stackable upright box with Horizontal Only rotation. Both methods returned zero placed and one unplaced because neither horizontal orientation fits the 244 cm width. The input remains 3.125 m3; open sides do not remove the modeled boundary.
Overwidth, overlength or overheight transport needs a separate equipment and route assessment with the responsible operator. This planner is not an out-of-gauge booking, permit check, folded-end-wall simulation or lifting-path approval.
Weight distribution is a separate check
Hapag-Lloyd’s Weight Distribution Guideline, Flatracks section relates allowable load to contact length and load transfer to the outer main beams. A shorter supporting length can reduce the permitted mass. Special contact arrangements need the operator’s assessment; the headline payload alone is insufficient.
The default CBM3 rectangular floor does not model those beams, bedding or concentrated-load strength. Its cargo ceiling and estimated center of gravity do not certify securing, axle limits or complete loaded gross mass. Add all applicable cargo-side base and packing weight to the input once, but do not invent an equipment tare from the missing catalog value.
Review placed and unplaced quantities before releasing a plan to a loading team. Longer search budgets do not guarantee an optimum. Account access and export availability follow the current tool controls; this guide does not promise unlimited anonymous calculations or exports.
Related loading guides
Compare the 20FR flat-rack loading guide, follow the step-by-step planning guide, or return to the loading-space guide directory.
Compare a Long Floor Without Assuming More Height
Measure the complete crate, skid or loaded pallet, including projections, base height and gross cargo-unit weight once. Enter different items in separate rows. Keep upright freight upright, permit only horizontal turning and leave stacking off unless suitable. Do not palletize an already assembled transport unit again. A box envelope does not describe machinery feet, lifting provisions, main-beam contact or securing; known cargo mass is not VGM.
The four-crate input is 4.800 m3 and 1,200 kg. Both recorded automatic methods place it. The 200 cm upright input is 4.320 m3 and 1,000 kg, yet exceeds this profile’s 195 cm height. It remains unplaced despite unused floor space and volume. Zero allocated containers in that isolated rejected test does not mean the order needs no equipment. The same permissions fit the 20FR height; this comparison is not a recommendation to use either actual unit without operator review.
40ft Flat-Rack Loading Questions
How many boxes or loaded pallets fit on a 40ft flat rack?
Test the entered sizes, quantities and rules, then check each row’s placed and unplaced counts. The four-crate example is an entered-order test, not unrestricted capacity. A volume quotient ignores individual dimensions, upright height and complete-unit handling constraints.
Why is the 40FR height different from a carrier’s high-cube example?
They are separate equipment references. The software keeps its current finite envelope; the external high-cube/platform example is not a corrected preset. Confirm the assigned equipment instead of borrowing a more favorable height or payload to turn a rejection into a fit.
Can a load extend over the sides or ends in this planner?
Not in the default modeled envelope. The separate 250 x 250 cm base diagnostic stays unplaced because neither permitted horizontal orientation fits its width. This is not out-of-gauge booking, folded-end-wall geometry, road permit verification or a lifting-path solver.
Can I use the full payload on a short machinery footprint?
Not on the strength of this geometric result. The named weight guideline treats resting length and main-beam transfer separately from total mass. The modeled rectangular deck does not certify those arrangements, concentrated-load strength or securing. Seek the operator’s cargo-specific assessment.
What should I review before sharing a flat-rack loading plan?
Confirm the real unit’s specification and relevant working limits, complete cargo dimensions and mass, permitted handling orientations, support/securement assessment, placed/unplaced quantities and equipment allocation. Keep cargo mass, equipment tare and verified gross mass distinct. Longer search time is not an optimum or transport-safety guarantee.
