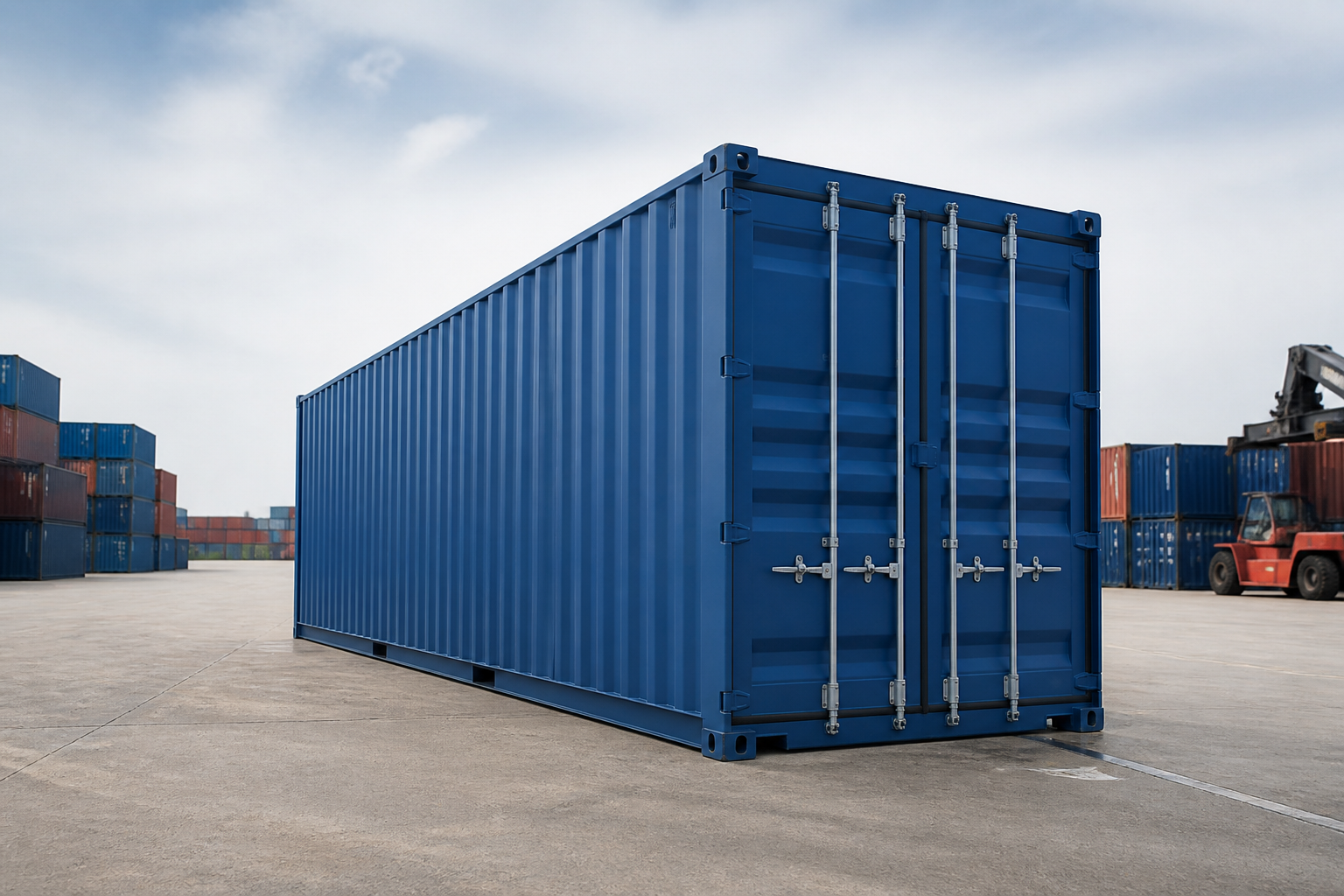

Quick Answer: The 20' High Cube Palletwide Loading Guide & Calculator profile (Equipment Code: 20PWHC) provides an internal usable planning envelope of 589.9 cm L × 241.8 cm W × 269.8 cm H (19' 4.2" L × 7' 11.2" W × 8' 10.2" H) with a usable cubic volume of 38.48 CBM (1,359 cu ft) and a max payload capacity of 27,700 kg (61,068 lbs). Unlike standard 20ft ocean containers that only fit 11 Euro pallets, the specialized 2,418 mm internal width of the 20PWHC enables two 1,200 mm pallets to sit side-by-side, boosting floor capacity to 14–15 Euro pallets—a 36% efficiency gain.
Key Technical Specifications (Dual Metric & Imperial)
The 20′ High Cube Palletwide container is engineered specifically for European intra-modal logistics to optimize palletized freight. The following technical parameters represent the validated engineering profile for 20PWHC recorded in CBM3, sourced directly from certified equipment authority Seaco:
| Specification Parameter | Metric (ISO Standard) | Imperial (US Standard) |
|---|---|---|
| Equipment Code & Class | 20PWHC (Maritime Palletwide Container) | Seaco Certified |
| Internal Usable Length | 589.9 cm | 19 ft 4.2 in |
| Internal Usable Width | 241.8 cm | 7 ft 11.2 in (Palletwide) |
| Internal Usable Height | 269.8 cm | 8 ft 10.2 in (High Cube) |
| Rear Door Clearance (W × H) | 240.4 × 258.5 cm | 94.6 × 101.8 in |
| Usable Internal Volume | 38.48 m³ (CBM) | 1,359 cu ft |
| Maximum Gross Mass (MGM) | 30,480 kg | 67,197 lbs |
| Tare Weight (Empty Unit) | 2,780 kg | 6,129 lbs |
| Maximum Net Cargo Payload | 27,700 kg | 61,068 lbs |
| Euro Pallets (1200×800 mm / EUR1) | 14–15 pallets on floor (28–30 double-stacked) | |
| Standard GMA Pallets (48×40 in / 1219×1016 mm) | 10 pallets on floor (20 double-stacked) | |
Pallet Loading Capacity & Floor Space Optimization
The fundamental challenge with standard ISO 20ft containers (internal width 2,352 mm) is that Euro pallets (1,200 × 800 mm) cannot be placed two-abreast along their 1,200 mm axis (1,200 + 1,200 = 2,400 mm > 2,352 mm). Shippers are forced to load pallets lengthwise (800 mm wide) or in inefficient pinwheel patterns, resulting in a maximum floor count of 11 pallets and roughly 150 mm of dead, wasted lateral space.
The 20′ High Cube Palletwide (20PWHC) solves this by expanding internal width to 2,418 mm. This allows two Euro pallets to be loaded side-by-side (2,400 mm total width) with an ideal 18 mm operating clearance. Along the 589.9 cm interior length, shippers fit 7 consecutive pairs (14 pallets) plus 1 turned pallet at the rear door, achieving 15 Euro pallets on a single floor tier. When products allow double-stacking under the generous 269.8 cm high-cube ceiling, capacity surges to 30 loaded pallets.
Interactive 3D Cargo Load Simulation
Verify your precise carton configuration, overhang margins, and gross axle weights before shipping. Use our free 20 hc loading calculator to generate interactive 3D container stuffing diagrams and maximize cargo volume.
Engineering & Fleet Architecture: Why 20PWHC Outperforms Standard Fleets
Engineered with thin-profile high-tensile Corten steel sidewalls and recessed interior vertical corrugations, the 20PWHC achieves a wider internal space while strictly maintaining standard external ISO corner casting dimensions (2,438 mm / 8 ft external width). This guarantees 100% interoperability with cellular container vessels, spreader cranes, rail chassis, and standard reach stackers. The extra 30 cm of High Cube height (269.8 cm vs 239 cm standard) provides the critical clearance needed to accommodate double-stacked pallets or tall industrial machinery without removing protective crating.
Weight Distribution, Axle Limits & Transport Safety
While the 20PWHC boasts a massive 27,700 kg (61,068 lbs) payload allowance, maritime and road weight limits require rigorous cargo distribution. Concentrating dense cargo toward the container nose causes drive axle overloads on drayage trucks, while rear-heavy loading compromises tractor steering and creates severe safety hazards. Always place heaviest pallets across the center of gravity and install certified dunnage bags between the pallet rows to prevent lateral shift in rough sea swells.
Step-by-Step Practical Load Planning Protocol
- Confirm Equipment Code & Plate: Always verify that the physical CSC data plate, trailer VIN, or booking note specifically identifies 20PWHC rather than standard equipment before starting the loading operation.
- Measure Packed Goods with Pallet Protrusions: Record cartons and unit loads with all external banding, stretch wrap, and pallet overhang included. Even 1 cm of unmeasured bulge can obstruct side walls.
- Configure Rotation & Vertical Stacking Rules: Define permissible crate orientations, fragile tops, and maximum compression ratings in CBM3 before simulating layouts.
- Execute 3D Visual Optimization: Review placed versus unplaced items, center-of-gravity balance, and lateral clearances in the 3D visualizer rather than relying solely on total cubic volume.
- Check Rear Door & Ingress Clearances: Verify that the tallest cargo units pass cleanly beneath the rear door header (258.5 cm) without striking top seals.
- Install Certified Dunnage & Load Bracing: Secure voids with heavy-duty inflatable dunnage bags, friction rubber mats, and ratchet lashing belts to prevent load shifting during transit.
6 Costly Load Planning Mistakes to Avoid
- Overlooking Pallet Overhang: A tiny 15 mm overhang on each side expands an 800 mm Euro pallet to 830 mm, immediately eliminating lateral tolerance in palletwide containers.
- Treating Volume and Payload Interchangeably: Dense freight will reach the 27,700 kg maximum weight rating long before the cubic capacity is filled.
- Ignoring Door Header Clearance: While internal ceiling height is 269.8 cm, rear door ingress height is 258.5 cm. Trying to forklift cargo matching ceiling height will hit the frame.
- Improper Longitudinal Weight Distribution: Overloading the nose or rear of the equipment causes serious axle weight violations and severe highway safety hazards.
- Assuming Uniform Fleet Sidewalls: Wall corrugation profiles vary across manufacturers. Always maintain a 15–20 mm planning margin.
- Neglecting In-Transit Dynamic Shifts: Failure to properly brace voids allows cargo to surge forward during braking, leading to carton crush and customs cargo claims.
Related Equipment Loading Guides & 3D Planners
Compare specifications, pallet stacking efficiency, and dimensional constraints with related logistics equipment:
- 40′ High Cube Palletwide (SeaPC+) Loading Guide & Calculator — 30 Euro pallet capacity, 79.0 m³ usable volume, high-density ocean freight
- 45′ High Cube Palletwide Loading Guide & Calculator — 33 Euro pallet capacity (mega-trailer equal), 89.2 m³ volume, European shortsea
- 53′ Domestic High Cube Intermodal Loading Guide & Calculator — 30 GMA pallet capacity, 112.4 m³ volume, North American rail intermodal
- 53′ Dry Van Trailer Loading Guide & Calculator — 26-30 GMA pallet capacity, 113.8 m³ volume, pinwheel patterns & bridge law
Frequently Asked Questions (FAQ)
How many Euro pallets fit in a 20' High Cube Palletwide container?
A 20' High Cube Palletwide container fits 14 to 15 Euro pallets (1200×800 mm) on a single floor tier, compared to only 11 pallets in a standard 20ft container. If goods are stackable, up to 30 Euro pallets can be loaded.
What are the exact internal dimensions of a 20PWHC container?
The internal usable dimensions are 589.9 cm (19 ft 4.2 in) length, 241.8 cm (7 ft 11.2 in) width, and 269.8 cm (8 ft 10.2 in) height, with a rear door opening of 240.4 cm wide by 258.5 cm high.
Can standard ISO container ships and cranes carry 20ft palletwide containers?
Yes. The external corner castings strictly adhere to ISO 668 dimensions (8ft / 243.8 cm external width), allowing 20PWHC containers to be loaded in cellular vessel slots and handled by standard terminal spreader beams.
What is the maximum payload weight for a 20' High Cube Palletwide?
The maximum cargo payload is 27,700 kg (61,068 lbs) with a maximum gross mass (MGM) of 30,480 kg and a tare weight of approximately 2,780 kg.
