40ft High Cube Loading Guide: Capacity, Height and Cargo Fit

A 40ft high-cube container gives taller cargo more interior height than a standard 40ft container, but not more floor space. Use the 40HC loading planner to test your entered cartons or transport units, then check doorway access and handling separately. Two reproducible examples below show ordinary cartons and a mixed order containing upright tall units.

Quick answer: CBM3’s 40HC profile measures 1,203 x 235 x 269 cm internally, providing 76.048 m3 of calculated volume and a 28,600 kg cargo planning limit. These software defaults do not verify the dimensions, door or permitted load of your assigned container.

What is a 40HC container?

40HC is CBM3’s 40ft high-cube dry-container profile. If your booking says 40HQ or uses another abbreviation, confirm its specification with the carrier. High cube describes height, not a refrigerated unit or an open roof. Use the equipment type actually booked.

40ft high-cube dimensions, door height and payload

Interior height and door height answer different questions. The interior can accommodate a unit that the doorway or available handling equipment cannot admit. Keep the software profile distinct from this carrier example.

Reference: Hapag-Lloyd, 40′ Standard High Cube, checked on 6 October 2026. Its table gives 235.0 cm inside width while its diagram labels 235.2 cm. This discrepancy and manufacturer variation are reasons to obtain the assigned unit’s measurements, not silently choose the larger number. The preset has no verified door opening.

How many CBM fit in a 40ft high cube?

CBM3 calculates 1,203 x 235 x 269 / 1,000,000 = 76.047645 m3 of geometric interior space. Cargo CBM is packed length x width x height x quantity / 1,000,000 for centimetre inputs. Sum the rows; do not mix metres or inches into centimetre fields.

Volume is a useful screening value, not a box count. A tall non-stackable unit may leave unusable space above or beside it. More cubic metres do not help a piece that is too wide, exceeds the payload or cannot pass through the actual doorway.

Two checked 40HC loading examples

These orders were run with CBM3 11.63.53 on 6 October 2026. All rows use Horizontal Only, with no palletization or additional global rules. Rows are not fragile and have no extra stack-weight limit entered. The 250 cm units in order B are non-stackable; the shorter cartons are stackable. Treat these as example permissions, not packaging-strength advice.

Both methods placed every entered unit in one model container. Independent checks covered counts, dimensions, rotation, boundaries, overlaps, support, stack restrictions and cargo weight. This is neither an exhaustive capacity search nor a physical loading trial. The 250 cm units are below the model’s 269 cm height, but this result does not verify door passage or lifting clearance.

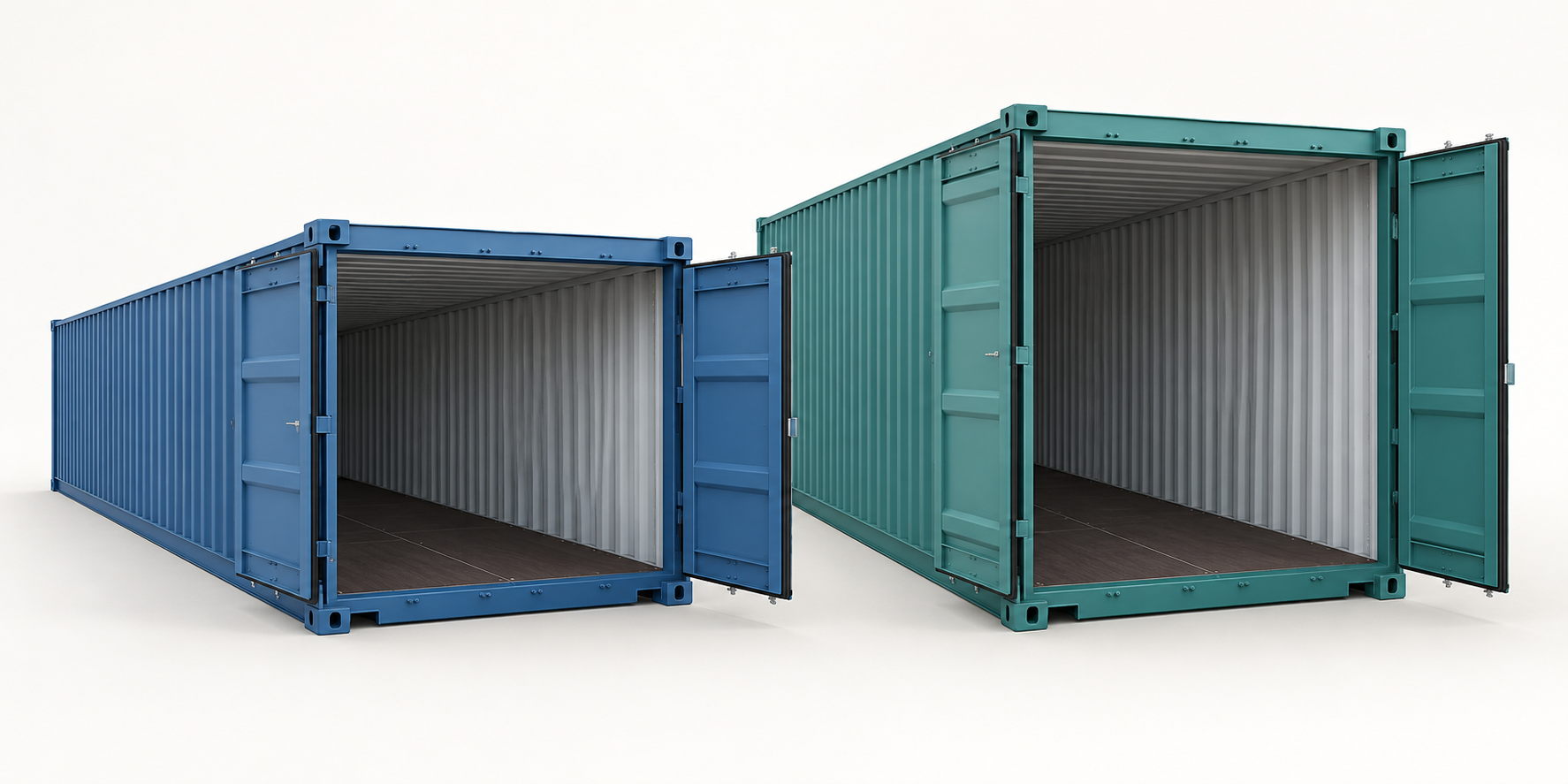

Standard 40ft versus high cube

The CBM3 40DC and 40HC profiles both use a 1,203 x 235 cm floor. Their heights are 239 and 269 cm respectively. Compare the same order and rules: extra height only helps where permitted orientations or additional supported layers can use it. Order A’s 150 cartons also fit the standard profile, so this example does not demonstrate a need to book high cube.

Order B’s 250 cm upright units exceed the standard profile’s 239 cm interior height. Do not change their rotation permission merely to make a comparison look better. See the standard 40ft loading guide for the standard-height examples. This comparison is about the software profiles, not an equipment-booking guarantee.

Pallets and tall cargo: measure the whole unit

High cube does not automatically take more non-stackable pallets because the planning floor is unchanged. Enter each loaded pallet’s complete outside footprint, total height including the base and gross mass including tare. Include wrapped overhang. Keep the pallet upright and disable stacking unless the complete unit is rated and permitted for it.

Do not add a pallet base twice or enable palletization again for an already loaded unit. Loose cartons that need palletization are a different workflow. For tall loads, also obtain the actual door opening and handling clearance; nominal container height cannot answer either question.

Run a 40HC plan with your own quantities

1. Open the 40HC loading planner. Check the selection; a loaded saved job or user change takes precedence over the starting preset.
2. Choose units, then enter one row per packed size and handling rule, with actual quantities and per-item weights.
3. Keep Horizontal Only for upright cargo. Use Full 3D Rotation only where turning the real item onto another face is explicitly allowed.
4. Set stacking, fragile and stack-weight restrictions honestly. Include loaded-pallet bases and tare once.
5. Press Plan 3D Cargo Loading and inspect Max Volume and Best Balance in standard non-palletized mode. Check placed and unplaced units, not only the volume percentage.
6. Review the sequence and each container. Validate door entry, equipment access, distribution and securing separately before shipment.

Loading and weight checks beyond the simulation

The IMO/ILO/UNECE CTU Code is non-mandatory packing and securing guidance, not a certificate issued by this simulation. Packaging strength, restraint and the actual handling operation need appropriate review.

The example cargo weights are not VGM. Under IMO’s SOLAS guidance, the shipper must provide verified packed-container mass for applicable vessel loading. Container tare, pallets, dunnage and securing materials must be accounted for through the applicable verification process; the software’s cargo total is not a substitute.

Common high-cube loading questions

Is a 40HC always better for a large order?

No. Extra height may be unusable for non-stackable units, and it does not widen the floor. Test the same order in both profiles and assess actual equipment and shipment constraints.

Can a 250 cm load enter a high-cube container?

Height alone cannot establish entry. Check the assigned doorway, full packed width and height, and space needed to lift or manoeuvre the unit. The successful tall-unit example is an interior placement result, not a door-clearance test.

Does the calculator find the maximum number of cartons?

These examples test entered quantities. They do not prove an unlimited-order capacity, mathematical optimum or minimum container count. Inspect any unplaced cargo and change assumptions only when the real goods permit it.

References and review date

Technical references: Hapag-Lloyd, 40′ Standard High Cube; IMO/ILO/UNECE, CTU Code; IMO, Verification of the Gross Mass of a Packed Container. Software reference: CBM3 11.63.53 equipment profiles and the checked examples above. Reviewed on 6 October 2026. Browse the loading-space guides for other equipment.

Software compatibility note, 8 October 2026 (Europe/Istanbul): The planning profiles and recorded example inputs were checked against the source-reviewed CBM3 11.63.56 candidate. The earlier example execution dates remain unchanged; this compatibility review is not a new optimization run or physical-loading test. Fleet-provider and carrier references are not manufacturer approval. Confirm the actual unit dimensions, payload and securing requirements.
